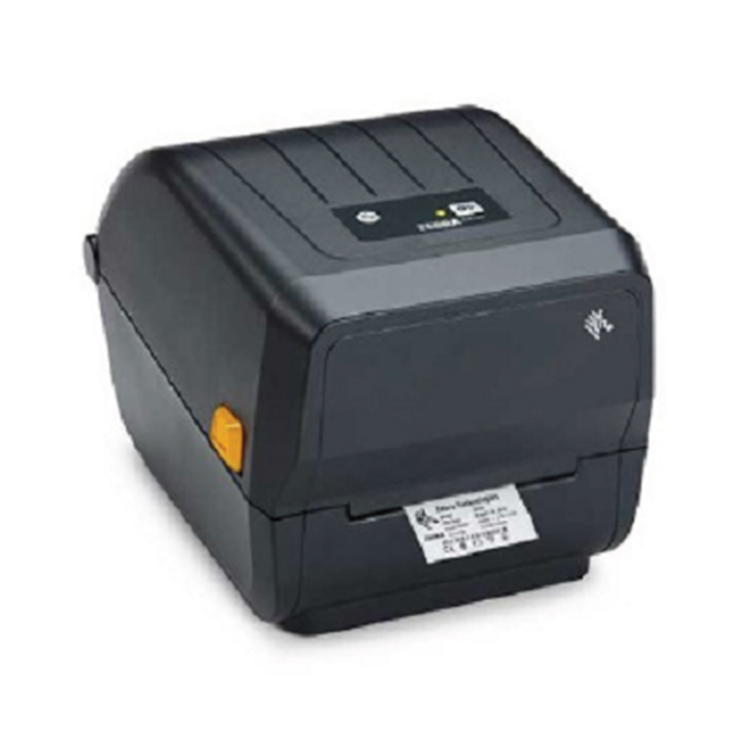

ZEBRA Barcode Printer – ZEBRA – ZD 220
₹1
Description
Not all printers are created equally, especially basic models. To reduce costs, value printers are often constructed using less expensive components. Many fail to perform under more demanding duty cycles, create delays and downtime for repairs, and require replacement after only a few years of use. Instead of conserving budget, customers are left with greater expense and hassle.
Zebra does it differently. The ZD220 desktop printer gives you reliable operation and basic features at an affordable price—both at the point of purchase and across the entire lifecycle. Engineered with Zebra quality, it boasts a dual-wall construction for added durability. And, it is ENERGY STAR® qualified to reduce your operational expenses. Built to last for years, the ZD220 provides an outstanding return on your investment.
Basic Features for Simple Operation
This 4-inch printer produces labels quickly, up to 4” per second, to keep your workflows moving. Increased memory allows you to store more fonts and graphics. A single LED indicator and a single button for feed/pause make it easy to operate and identify printer status. Choose from direct thermal or thermal transfer models, and add an optional factory-installed peeler. The ZD220 features a core set of Print DNA software applications, powered by Link-OS® Basic, to deliver a cost-effective and dependable print experience.
Backed by Zebra’s Worldwide Service and Support
Access repair support services, live-agent technical support and software support quickly anywhere around the globe through Zebra and its trusted network of more than 10,000 partners. Zebra OneCare™ provides enhanced coverage that exceeds standard warranty for normal wear and tear, priority repair turnaround times at the depot and more—all for a tiny fraction of the cost of a single repair.
Consistently Exceptional Zebra Certified Supplies
Printing supplies can impact everything from printhead lifespan to operational efficiency. That’s why we design, produce and rigorously pretest our own line of thermal printing supplies to ensure consistent, optimized performance in your Zebra printer—and peace of mind for you. For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies.
Get Printing Quickly
The ZD220 is simple to install and begin printing—right out of the box. USB connectivity allows for universal interoperability. Easily replace legacy printers using ZPL, EPL or non-Zebra command languages. And, media changes are expedited with Zebra’s OpenACCESS™ clamshell design. It is ideal for use in transportation and logistics, light manufacturing, retail and healthcare applications to print a variety of tickets, tags, passes, labels and receipts.
Specifications
| Operating Temp. | 40° to 105° F/4.4° to 41° C | |||
| Storage Temp. | -40° to 140° F/-40° to 60° C | |||
| Operating Humidity | 10% to 90% non-condensing | |||
| Storage Humidity | 5% to 95% non-condensing | |||
| Electrical | Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR qualified | |||
| Dimension | 10.5 in. L x 7.75 in. W x 7.5 in. H | 267 mm L x 197 mm W x 191 mm H | 8.6 in. L x 6.9 in. W x 5.9 in. H | 220 mm L x 176 mm W x 151 mm H |
| Weight | 2.5 lbs./1.1 kg | |||
| Media Handling | Factory installed peeler | |||
| Real Time Clock | None | |||
| Resolution | 203 dpi/8 dots per mm | |||
| Memory | 256 MB Flash; 128 MB SDRAM | |||
| Maximum Print Width | 4.09 in./104 mm | |||
| Maximum Print Speed | 4 in./102 mm per second | |||
| Media Sensors | Movable black mark sensor, limited range from center to left side | |||
| Fixed off-center gap sensor | ||||
| Firmware | ZPL II; EPL 2; XML | |||
| Bar Code Ratios | 2:1 and 3:1 | |||
| 1D Bar Codes | Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code | |||
| 2D Bar Codes | Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec | |||
| Fonts and Graphics | 16 resident expandable ZPL II bitmap fonts | |||
| Two resident scalable ZPL fonts | ||||
| Five resident expandable EPL2 fonts | ||||
| Native open-type font support | ||||
| Unicode compliant for multi-language, on-demand thermal printing | ||||
| China units include SimSun simplified Chinese font | ||||
| 50 MB user available non-volatile memory, 8 MB user available SDRAM | ||||
| Maximum Label Length | 39.0 in./991 mm | |||
| Media Width | 1.00 in./25.4 mm to 4.4 in./112 mm | |||
| Media Roll Size | 5.00 in./127 mm outer diameter Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1 mm) | |||
| Thickness | 0.003 in. (0.08 mm) min.; 0.0075 in. (.1905 mm) max. (tear-off mode only) | |||
| Media Types | Roll-fed or fan-fold, die-cut or continuous with or without a black mark, tag stock, continuous receipt paper, and wristbands | |||
| Ribbon Outside Diameter | 1.34 in./34 mm (74 m) | |||
| Maximum Ribbon Length | 244 ft. (74 m) | |||
| Ribbon Ratio | 1:1 media to ribbon (74 m) | |||
| Ribbon Width | 1.33 in./33.8 mm ~ 4.3 in./109.2 mm | |||
| Ribbon Core I.D. | 74 Meter ribbon 0.5 in./12.7 mm | |||
| Zebra Setup Utilities | Enhances out-of-the-box experience by enabling quick and easy printer configuration | |||
| ZebraDesigner | Makes designing and printing industry-standard and compliant labels simple, including fixed or variable data | |||
| Essentials | ||||
| Emulations | On-printer apps allow Zebra printers to use legacy languages normally associated with other printer brands |
